Thursday, August 28, 2008

Jitter and Eye Measurements: Ideal Recovery Clock

All Transition Minimized Differential Signaling (TMDS) Clock and Data
signal jitter specifications are specified relative to an Ideal Recovery
Clock defined below. The Data jitter is not specified numerically, but
instead, an High-Definition Multimedia Interface (HDMI) device or cable
shall adhere to the appropriate eye diagram(s) when the Transition
Minimized Differential Signaling (TMDS) data signals are measured using an
Ideal Recovery Clock as a trigger source.

The Transition Minimized Differential Signaling (TMDS) Clock signal may
contain low-frequency jitter components, which can be tracked by a Sink's
clock recovery circuitry, and high-frequency components, which are not
typically tracked. The purpose of the Ideal Recovery Clock is to give an
accurate representation of link performance when used as a trigger for eye
diagram and clock jitter specifications. The eye mask specifies the
relationship of clock jitter to data jitter only indirectly.

For the purposes of jitter and eye diagram specification, the Ideal
Recovery Clock is defined relative to the Transition Minimized Differential
Signaling (TMDS) clock signal. The Ideal Recovery Clock shall be equivalent
to the signal that would be derived by a perfect PLL (Ideal Clock Recovery
Unit) with a jitter transfer function shown in 'Jitter Transfer Function'
Equation, when the Transition Minimized Differential Signaling (TMDS) clock
signal were input into that PLL. This jitter transfer function has the
behavior of a low pass filter with 20dB/decade roll-off and with a –3dB
point of 4MHz.
(See attached file: Jitter Transfer Function of ideal CRU.jpg)
For the purposes of compliance testing, a Clock Recovery Unit is used to
generate a Recovered Clock, which is meant to approximate the Ideal
Recovery Clock. This Recovered Clock is used for measurement of the jitter
and eye diagram.

Wednesday, August 20, 2008

Transition Minimized Differential Signaling Overview (TMDS Overview)

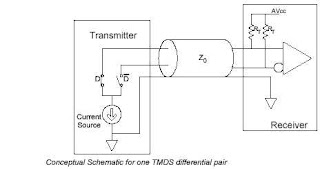

The conceptual schematic of one TMDS (Transition Minimized Differential
Signaling) differential pair is shown in 'Conceptual Schematic for one TMDS
differential pair' Figure. (See attached file: Conceptual schematic for one
TMDS differential pair.jpg)TMDS technology (transition minimized
differential signaling technology) uses current drive to develop the low
voltage differential signal at the Sink side of the DC-coupled transmission
line. The link reference voltage AVcc sets the high voltage level of the
differential signal, while the low voltage level is determined by the
current source of the HDMI Source and the termination resistance at the
Sink. The termination resistance (RT) and the characteristic impedance of
the cable (Z0) must be matched.

A single-ended differential signal, representing either the positive or
negative terminal of a differential pair, is illustrated in 'Single-ended
differential signal' Figure. The nominal high-level voltage of the signal
is AVcc and the nominal low-level voltage of the signal is (AVcc - Vswing).
Since the swing is differential on the pair, the net signal on the pair has
a swing twice that of the single-ended signal, or 2 Vswing. The
differential signal, as shown in 'Differential signal' Figure, (See
attached file: Differential signal.jpg) swings between positive Vswing and
negative Vswing.

The signal test points for a TMDS link (Transition Minimized Differential
Signaling Link) are shown in 'TMDS Link Test Points' Figure. (See attached
file: TMDS Link Test Points.jpg) TP1 is used for testing of HDMI Sources
and Transmitter components. TP2 is used for testing of HDMI Sinks and
Receiver components. TP1 and TP2 together are also used for testing of
cables.

Tuesday, August 19, 2008

High Definition Multimedia Interface - HDMI Physical Layer Electrical Specification

Some timing parameter values in this specification are based on the clock
rate of the link while others are based on absolute values. For scalable
timing parameters based on the TMDS clock rate (Transition Minimized
Differential Signaling Clock Rate), the time period of the clock is denoted
as 'TMDS character time', or, 'Transition Minimized Differential Signaling
Character Rate', or Tcharacter. One tenth of the character time is called
the bit time, or Tbit. The bit time is also referred to as one Unit
Interval in the jitter and eye diagram specifications.

Schematic diagrams contained in this chapter are for illustration only and
do not represent the only feasible implementation.

Transition Minimized Differential Signaling Overview (TMDS Overview)
The conceptual schematic of one TMDS (Transition Minimized Differential
Signaling) differential pair is shown in 'Conceptual Schematic for one TMDS
(Transition Minimized Differential Signaling) differential pair' Figure.
(See attached file: Conceptual schematic for one TMDS differential
pair.jpg) TMDS technology (transition minimized differential signaling
technology) uses current drive to develop the low voltage differential
signal at the Sink side of the DC-coupled transmission line. The link
reference voltage AVcc sets the high voltage level of the differential
signal, while the low voltage level is determined by the current source of
the HDMI Source and the termination resistance at the Sink. The termination
resistance (RT) and the characteristic impedance of the cable (Z0) must be
matched.

A single-ended differential signal, representing either the positive or
negative terminal of a differential pair, is illustrated in 'Single-ended
differential signal' Figure. (See attached file: Single-ended differential
signal.jpg) The nominal high-level voltage of the signal is AVcc and the
nominal low-level voltage of the signal is (AVcc - Vswing). Since the swing
is differential on the pair, the net signal on the pair has a swing twice
that of the single-ended signal, or 2 Vswing. The differential signal, as
shown in 'Differential signal' Figure, (See attached file: Differential
signal.jpg) swings between positive Vswing and negative Vswing.

The signal test points for a TMDS link (Transition Minimized Differential
Signaling Link) are shown in 'TMDS Link Test Points' Figure. (See attached
file: TMDS Link Test Points.jpg) TP1 is used for testing of HDMI Sources
and Transmitter components. TP2 is used for testing of HDMI Sinks and
Receiver components. TP1 and TP2 together are also used for testing of
cables.

High Definition Multimedia Interface - HDMI Physical Layer

High Definition Multimedia Interface - HDMI Physical Layer Overview of
Connectors
A device's external HDMI - high-definition multimedia interface -
connection shall be presented via one of the three specified HDMI
(high-definition multimedia interface) connectors, Type A, Type B or Type
C. This connector can be attached directly to the device or can be attached
via a cable adapter that is shipped with the device.

All three connectors carry all required HDMI signals (high-definition
multimedia interface signals), including a TMDS link (Transition Minimized
Differential Signaling links). The Type B connector is slightly larger and
carries a second TMDS link (Transition Minimized Differential Signaling
links), which is necessary to support very high-resolution displays using
dual link. The Type C connector carries the same signals as the Type A but
is more compact and intended for mobile applications.

Passive cable adapters between connector types are specified.

High Definition Multimedia Interface - HDMI Physical Layer Connector
Support Requirements
All features and functions are equally available to all three connectors.

High Definition Multimedia Interface - HDMI Physical Layer Dual-Link
To support DVI signals greater than 165Mpixels/sec, the dual-link
capability of the Type B connector shall be used. To support DVI signals
less than or equal to 165Mpixels/sec, single-link operation shall be used.

To support very high-speed HDMI signals (high-definition multimedia
interface signals), the dual-link capability of the Type B connector is
available. The single-link to dual-link crossover frequency for HDMI
(high-definition multimedia interface) will be defined in a future
specification and will be greater than 340Mpixels/sec. Dual-link cannot be
used for formats below that crossover frequency.

Saturday, August 16, 2008

High-Definition Multimedia Interface (HDMI) Overview

High-definition multimedia interface (HDMI) system architecture is defined to consist of Sources and Sinks. A given device may have one or more high-definition multimedia interface HDMI inputs and one or more HDMI high-definition multimedia interface outputs. Each High-definition multimedia interface HDMI input on these devices shall follow all of the rules for an High-definition multimedia interface HDMI Sink and each HDMI High-definition multimedia interface output shall follow all of the rules for an HDMI High-definition multimedia interface Source.

As shown in "HDMI Block Diagram" Figure, the HDMI - high-definition multimedia interface - cable and connectors carry four differential pairs that make up the TMDS data and clock channels. These channels are used to carry video, audio and auxiliary data. In addition, HDMI high-definition multimedia interface carries a VESA DDC channel. The DDC is used for configuration and status exchange between a single Source and a single Sink. The optional CEC protocol provides high-level control functions between all of the various audiovisual products in a user’s environment.

Audio, video and auxiliary data is transmitted across the three TMDS data channels. A TMDS clock, typically running at the video pixel rate, is transmitted on the TMDS clock channel and is used by the receiver as a frequency reference for data recovery on the three TMDS data channels. At the source, TMDS encoding converts the 8 bits per TMDS data channel into the 10 bit DC-balanced, transition minimized sequence which is then transmitted serially across the pair at a rate of 10 bits per TMDS clock period.

Video data can have a pixel size of 24, 30, 36 or 48 bits. Video at the default 24-bit color depth is carried at a TMDS clock rate equal to the pixel clock rate. Higher color depths are carried using a correspondingly higher TMDS clock rate. Video formats with TMDS rates below 25MHz (e.g. 13.5MHz for 480i/NTSC) can be transmitted using a pixel-repetition scheme. The video pixels can be encoded in either RGB, YCBCR 4:4:4 or YCBCR 4:2:2 formats.

In order to transmit audio and auxiliary data across the TMDS channels, HDMI - high definition multimedia interface - uses a packet structure. In order to attain the higher reliability required of audio and control data, this data is protected with a BCH error correction code and is encoded using a special error reduction coding to produce the 10-bit word that is transmitted.

Basic audio functionality consists of a single IEC 60958 L-PCM audio stream at sample rates of 32kHz, 44.1kHz or 48kHz. This can accommodate any normal stereo stream. Optionally, HDMI - high definition multimedia interface - can carry such audio at sample rates up to 192KHz and with 3 to 8 audio channels. HDMI - high definition multimedia interface - can also carry an IEC 61937 compressed (e.g. surround-sound) audio stream at bit rates up to 24.576Mbps. HDMI - high definition multimedia interface - can also carry from 2 to 8 channels of One Bit Audio and a compressed form of One Bit Audio called DST.

The DDC is used by the Source to read the Sink’s Enhanced Extended Display Identification Data (E-EDID) in order to discover the Sink’s configuration and/or capabilities.
